COUPLINGS TYPE MKO 2

MKO (lightweight compensating coupling) is a common industrial coupling, designed for widespread usage in machines and mechanisms for various purposes in all industries. It is characterized by simplicity of design and, respectively, minimum cost. The shape of the elastic element - "Ring".

In contrast to the standard all-metal couplings according to GOST 26455-96, the MKO coupling is structurally protected from mechanical sparking as well as from dangerous “overhang” of the removable middle part (spacer) in case of emergency destruction of the elastic element and at the same time it provides a short-term torque transmission (without saving compensating characteristics).

The standardized series of МКО couplings is coordinated in terms of torque and connecting dimensions with asynchronous electric motors for general industrial purposes..

As standard, the coupling is supplied with coupling halves “for boring” and for the typical distance between the ends of the shafts S , shown in the table. To order a coupling with a bore and keyways and (or) an individual distance S, you must fill in the questionnaire.

SPECIFICATIONS

MKO-2 - dimensions
Coupling nominal size	Standard length of coupling half L, mm	Coupling outer diameter D, mm	The minimum distance between the ends of the shafts S_me, mm	Bore diameter of half-couplings d_max, mm	Transmission unit weight		Weight of unbored coupling half standard, kg
Coupling nominal size	Standard length of coupling half L, mm	Coupling outer diameter D, mm		Bore diameter of half-couplings d_max, mm	At S_me, kg	+ΔS=10мм, kg	Weight of unbored coupling half standard, kg
MKO 2-4	40	87	60	38	0,8	0,06	0,8
MKO 2-8	50	105	60	48	1,1	0,07	1,5
MKO 2-17	60	116	60	55	1,4	0,13	2,4
MKO 2-34	70	136	90	65	2,9	0,16	3,9
MKO 2-67	80	146	90	75	3,4	0,18	5,5
MKO 2-134	90	166	90	85	4,6	0,19	8,0
MKO 2-270	100	185	110	90	8,0	0,26	9,7
MKO 2-540	120	225	110	120	10,6	0,33	16,7
MKO 2-850	140	260	140	130	17,0	0,49	23,5
MKO 2-1050	150	280	140	150	21,1	0,55	28,5
MKO 2-1340	160	320	160	160	30,3	0,59	41,0

*Transmission unit length S performed, starting from size Smin and more in steps ΔS = 10mm., other sizes depending on the distance between the shafts are available on request. Length of half couplings L may differ from the standard, subject to filling out the questionnaire. dimensions AT and t pockets for fastening the coupling half with a nut are provided upon request when filling out the questionnaire.

Note: To determine the mass of the coupling assembly, it is necessary to add the mass of the two coupling halves with the mass of the transmission unit.. If not specified, the size of the cylindrical bore of the half couplings is made with an accuracy of H7 and the keyways Js9 are made according to DIN standards 6885.

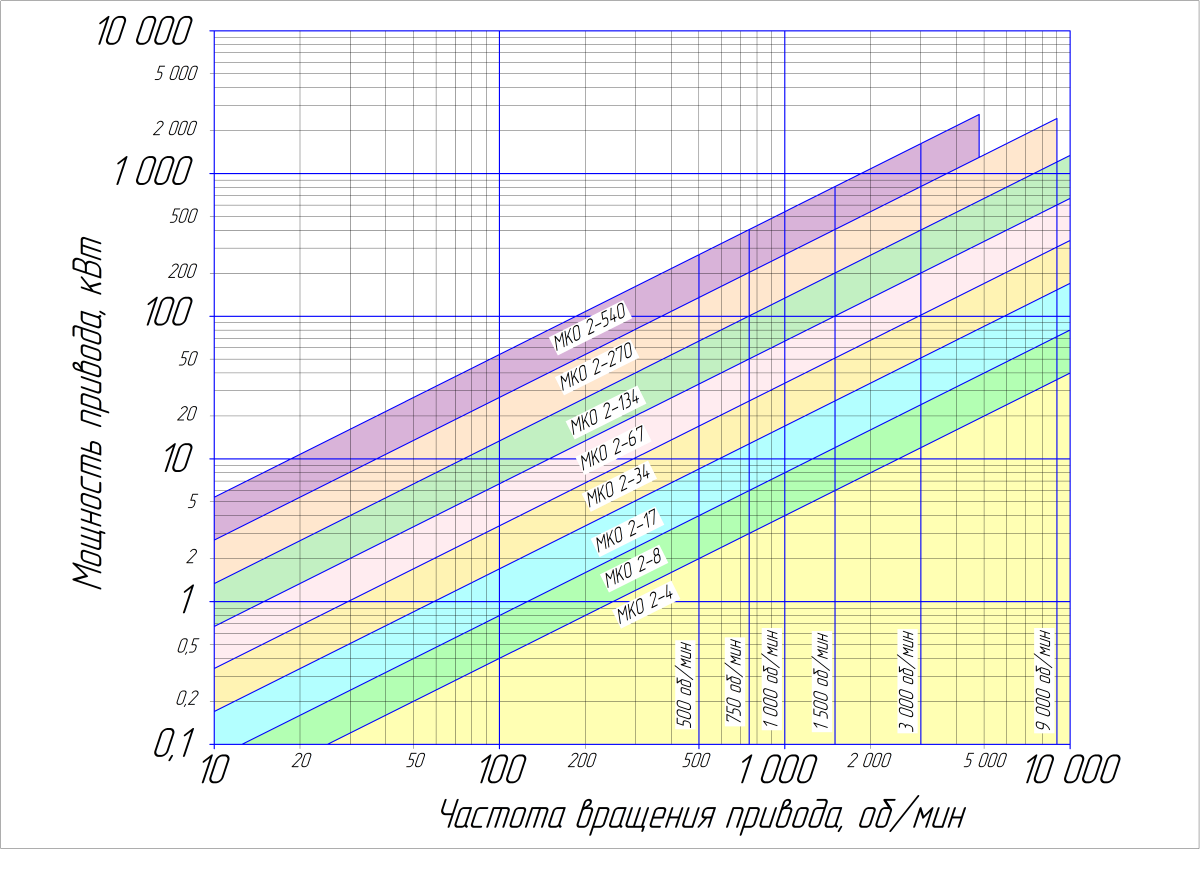

MKO-2 - technical data
Coupling nominal size	Specific power kW / 1000rpm	Torque, Nm		Maksim. turnovers, rpm	Maksim. revolutions without balancing, rpm	Max. axial displacement		Max. radial displacement, ±мм
Coupling nominal size	Specific power kW / 1000rpm	Nominal, Nm	Peak overload, Nm	Maksim. turnovers, rpm	Maksim. revolutions without balancing, rpm	± mm	Equivalent. an effort, n	Max. radial displacement, ±мм
MKO 2-4	4	40	80	22000	8000	2	80	0,4
MKO 2-8	8	80	160	18000	7200	2,4	150	0,5
MKO 2-17	17	160	320	17000	6500	2,8	230	0,5
MKO 2-34	34	315	630	14000	5800	3,2	320	0,6
MKO 2-67	67	630	1260	13000	5200	2,3	480	0,6
MKO 2-134	134	1250	2500	11000	4800	2,5	860	0,7
MKO 2-270	270	2500	5000	10000	4300	2,7	1800	0,9
MKO 2-540	540	5000	10000	8500	3900	2,5	2400	0,9
MKO 2-850	850	8120	16240	7000	3600	2,8	3900	1,1
MKO 2-1050	1050	10030	20060	6800	3400	3,0	5100	1,1
MKO 2-1340	1340	12800	25600	6000	3000	3,6	6300	1,3
